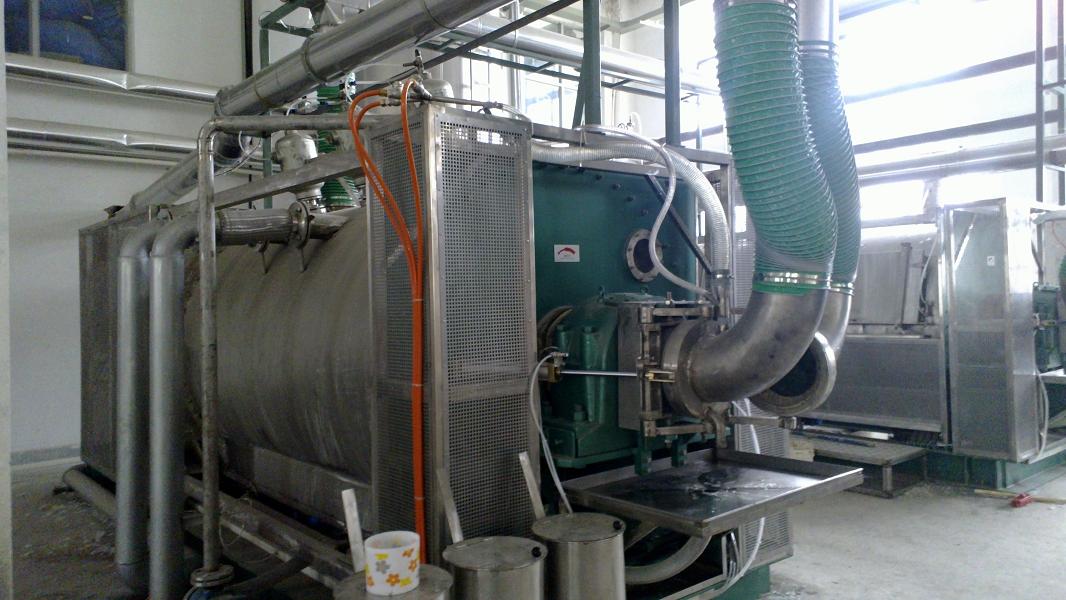

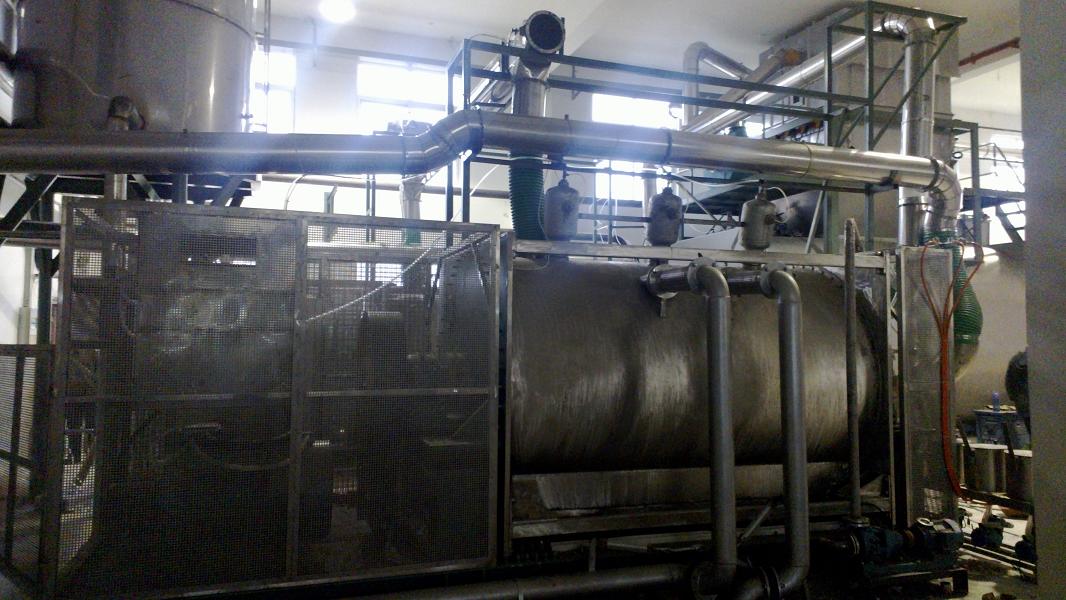

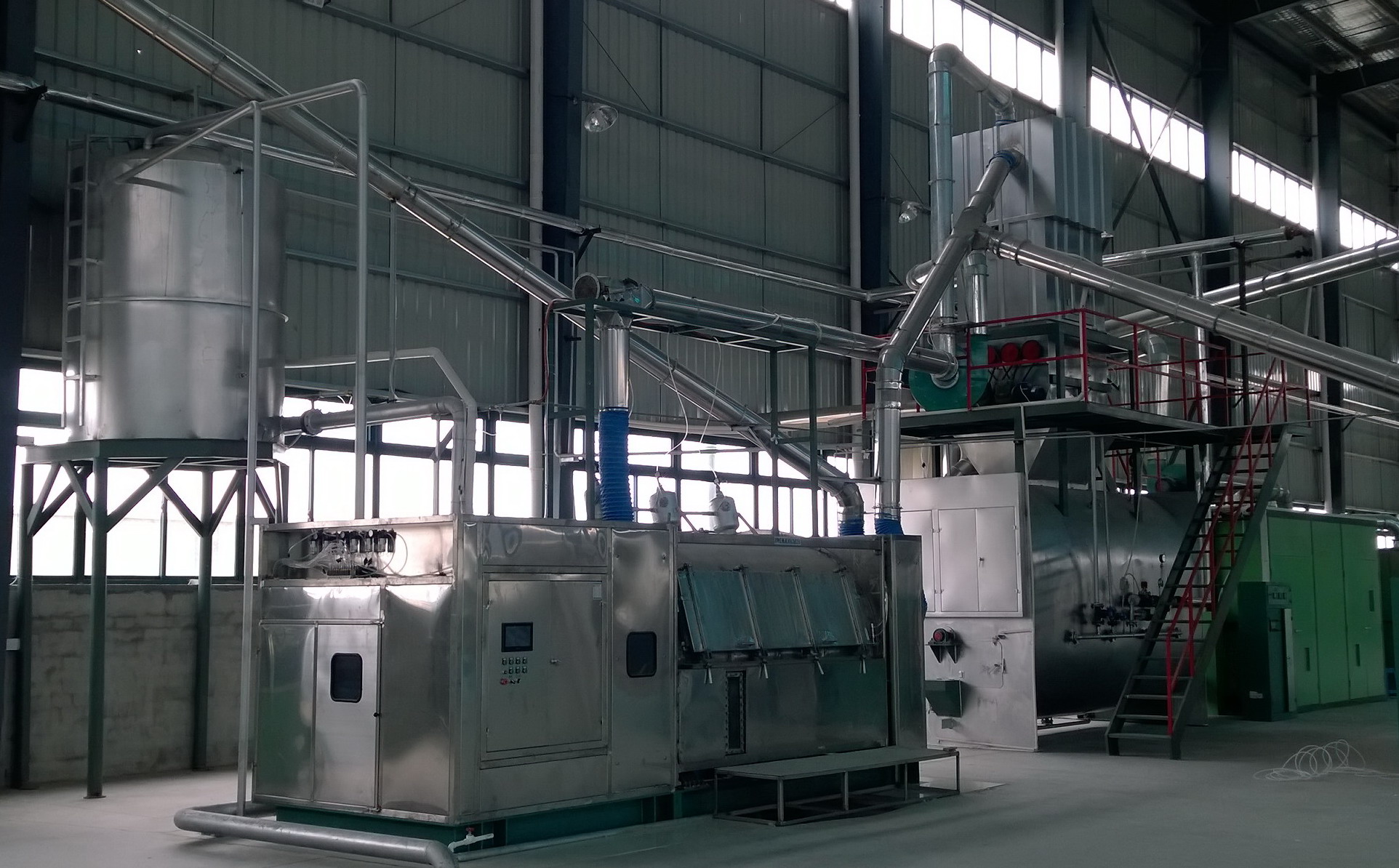

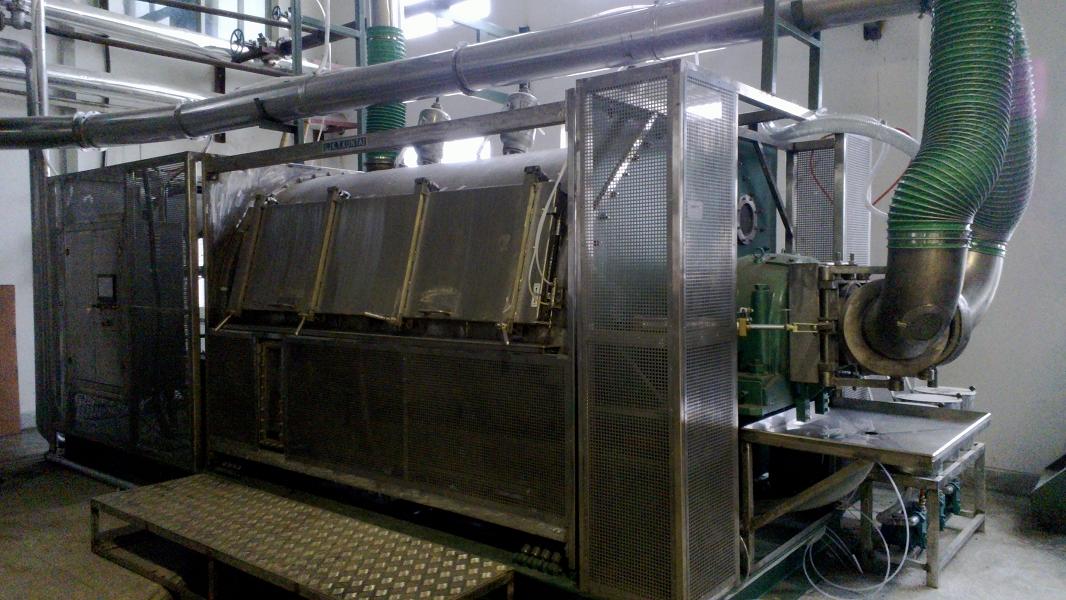

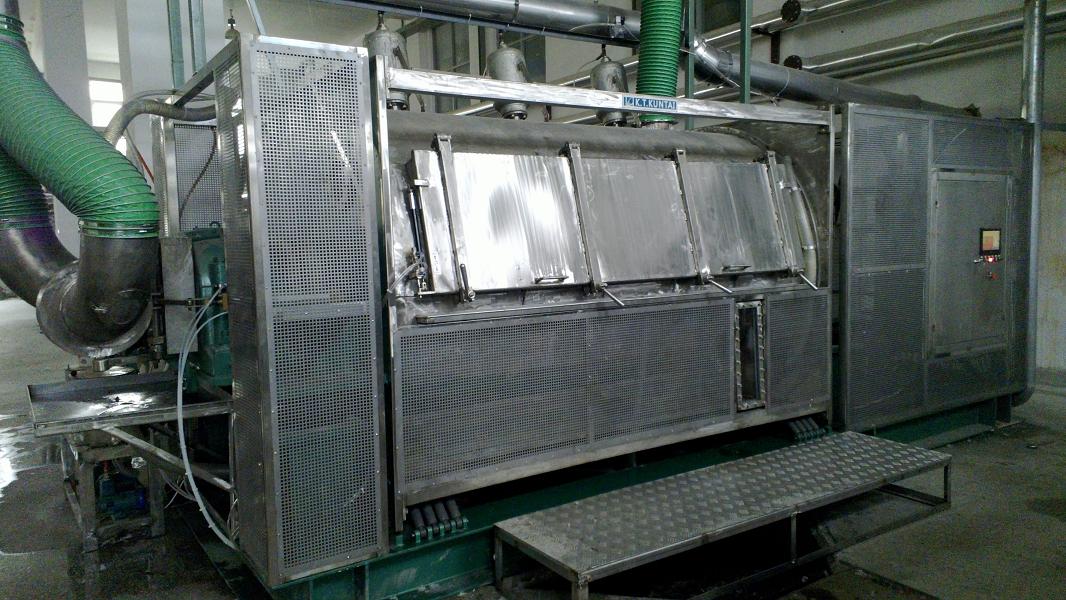

XT200-02 Washing machine1


 XT200-02 Washing machine2


 XT200-02 Washing machine3


 XT200-02 Washing machine 4

At present the vast majority of down processing enterprises in the use of down washing processing equipment are traditional horizontal washing machine. The manufacturing structure initially although also draws lessons from Germany, Japan, Taiwan, was the most advanced technology, but so far in addition to materials, workmanship is becoming more and more sophisticated, technology is becoming more and more mature outside, but there is no substantial improvement. German company L.H.LORCH although as early as 10 years ago, had been discontinued, but is currently down the industry recognized the earliest production manufacturing all kinds of feather processing equipment of foreign factories, the production of drum type without shaft elution of various machine, regardless of technology or materials, workmanship at that time and even now is very advanced, but also because of this, the cost is also very high. The same specifications of the equipment, the price is often higher than the domestic production of several times, and even more than ten times. At present, therefore, the feather industry only few several South Korea, Japan, and Europe's foreign down factories and outside the use of German L.H.LORCH1995 years ago production equipment, including domestic Taiwan's vast number feather processing enterprises to use domestic equipment manufacturing enterprises manufacturing down processing equipment.

Company in 2010 lasted 3 years developed successful XT2001 type washing machine of an organic whole, its structure and principle are is no shaft elution of various machine based in Germany L.H.LORCH drum on redesigned, and with many domestic feather processing enterprises for many years production experience of manufacturing. Its biggest advantage is a province, two of the damage down. Compared to the traditional type of equipment, the two aspects of energy saving and energy saving are greatly improved and improved.

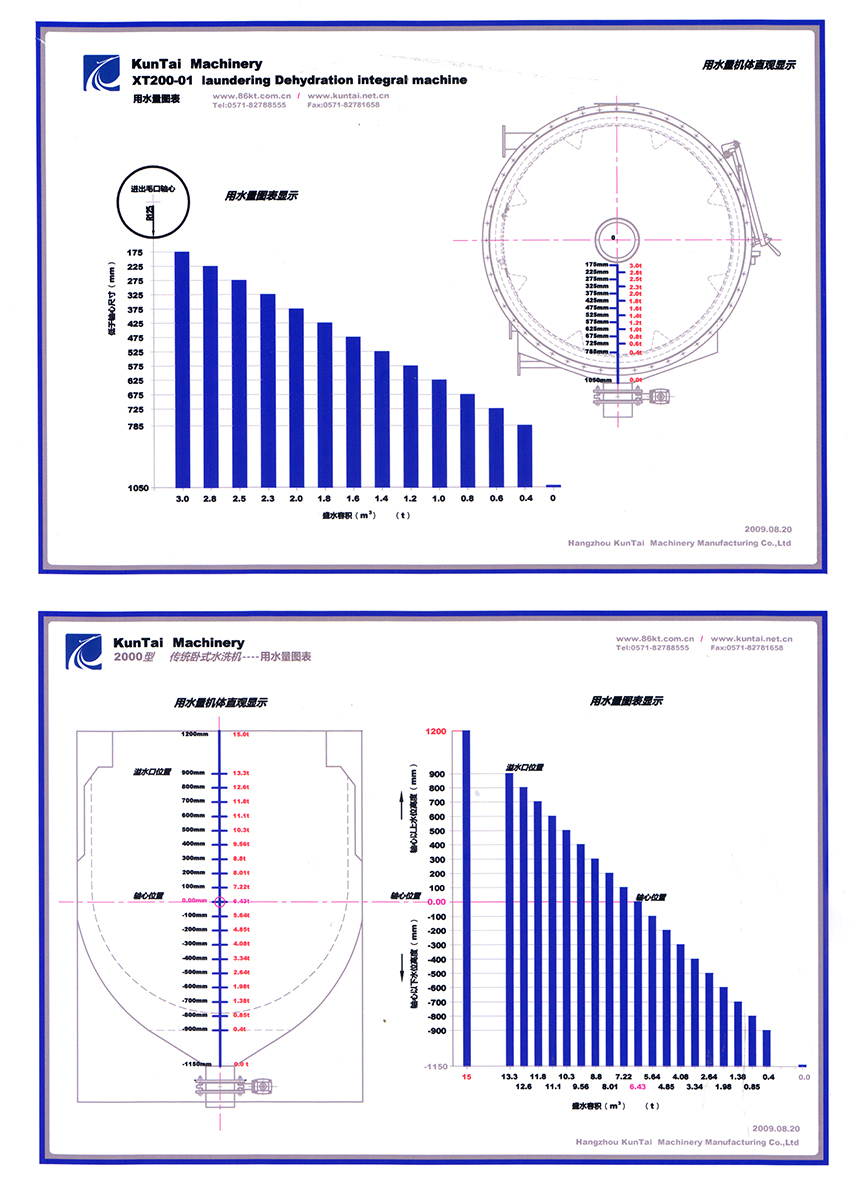

Traditional type washing machine is a horizontal stirring type washing and provided with a rotating shaft and the stirring blade, equipment operation through the rotating shaft mixing blade mixing down the feather and water and detergent fully mixed, and again after repeated a large number of water rinsing water discharge to achieve the cleaning effect of down. Traditional washing machine because of structural reasons, a large amount of water, the general water washing machine to add to the water level of the water need to be consumed when the water 12T - 10T. Washing machine a process of working time is 90 minutes, the water consumption according to the requirements of the degree of cleanliness is different, at least 60T of water consumption, water consumption of up to 120T.

XT2001 elution of various machine working principle and the traditional type washing machine on the contrary, it is through a rotating drum to achieve down repeated rolling, so inside the machine without rotating shaft and the stirring blade without damaging the down. It is because of the roller can be rotated, it needs water in high water level is only 2.5T2.8T. In actual production, the water consumption is only 1/3-1/4 of the traditional horizontal water washing machine.

In contrast, the gap between the two is self-evident. Of course, this is not just the amount of water consumption, less water, less sewage discharge, the amount of sewage treatment less, on the nature of the environment pollution is less. And the reduction of the amount of waste water treatment to save a variety of such as electricity, pharmaceutical costs, personnel and facilities costs and so on will be a considerable number of enterprises.

According to the actual operation of the XT200-1 type of washing machine, the company has done dozens of technical improvements on the original basis, the improved XT200-2 type washing machine installed in December 2012 after the completion of the factory and normal operation. In 2013, the company has received several orders, began to produce XT200-3 type washing machine.

Currently, the latest model has been upgraded to the XT200-4 type.
